CHARACTERISTICS

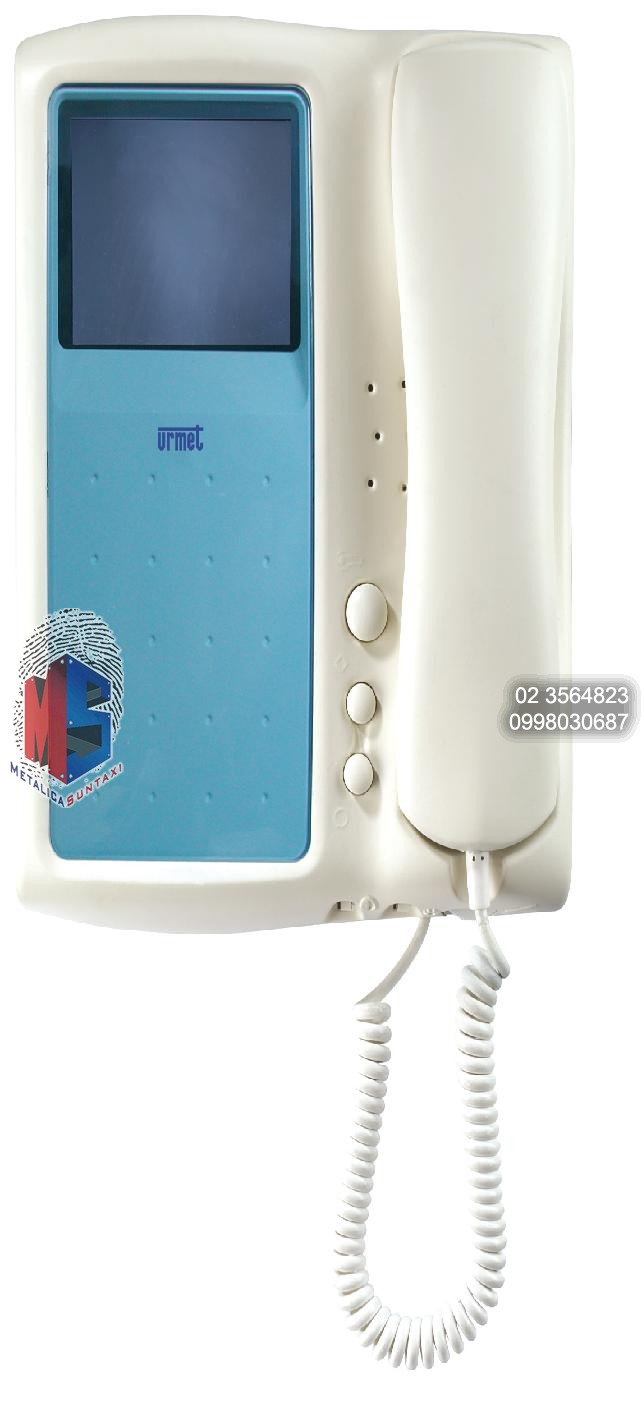

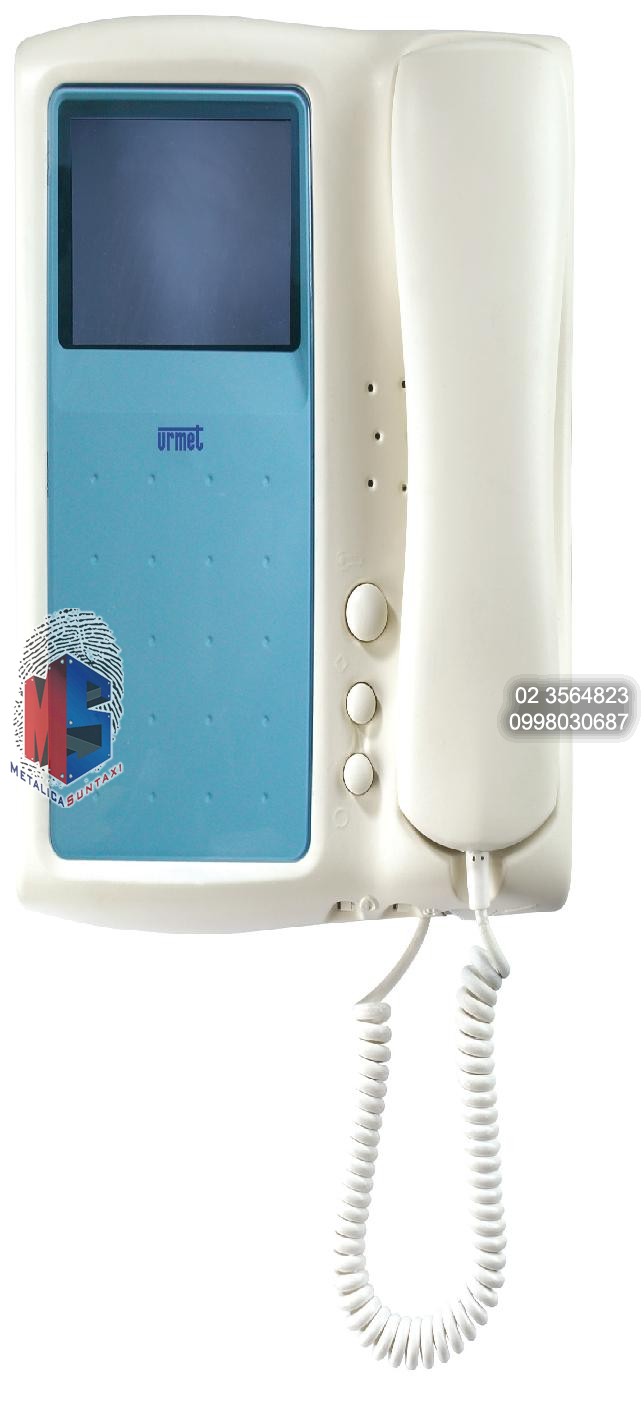

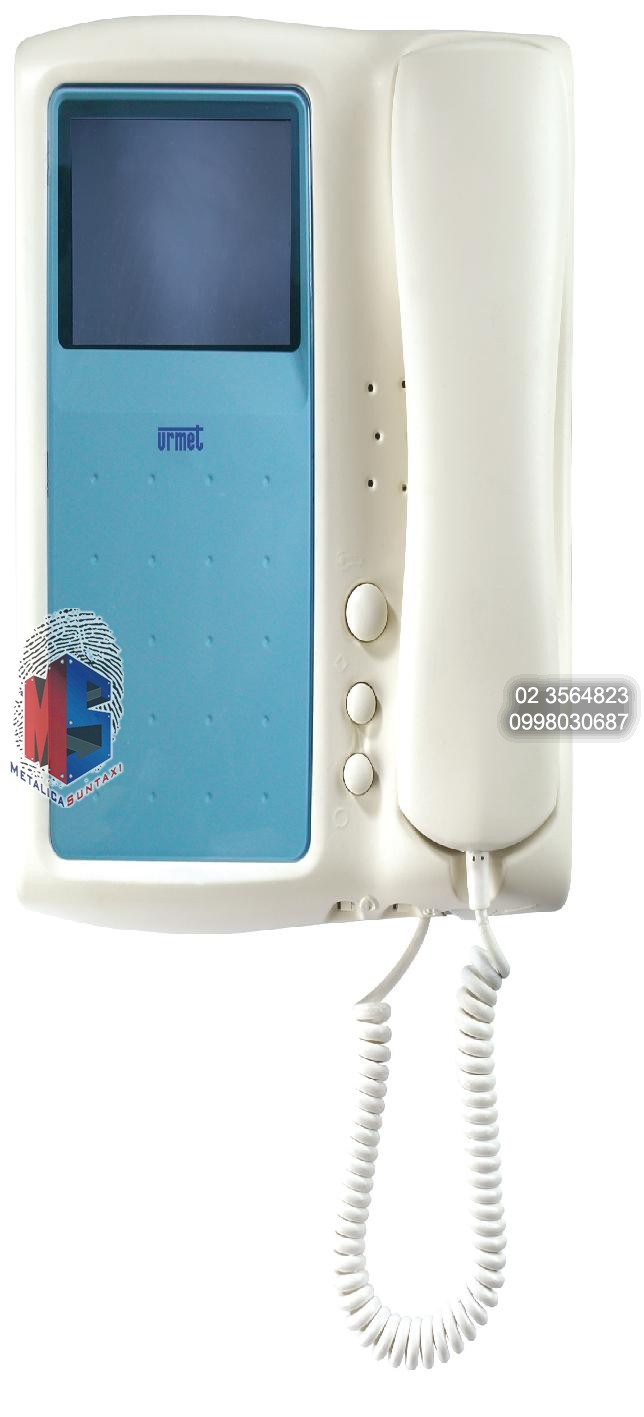

The Artico mod.1705/1 video doorphone features an
electronic type call generated by an additional speaker
located under the handset. It can be used on all systems
with electronic call together with the Atlantico video
doorphone and doorphone Mod. 1132 and 1133.
Thanks to a potentiometer, the call volume can be
adjusted (mute - low - high).
The mute position prevents the call and is indicated by
means of a red mechanical indicator on the lower part of
the video doorphone.
Besides opening the electric lock by means of the key
( ), it is also possible to control additional services (stair
lights, additional electric lock opening) using the 2
buttons ( and ) on the video doorphone itself.
Artico has a 4" flat B/W screen with contrast ( ) and light
( ) adjustment by means of the 2 potentiometers located
in the lower section.
Artico is supplied without wall retention bracket.
Various brackets exist, for connecting the video
doorphone to analogue systems with or without coaxial
cable and to digital V.O.P. Digivoice and 2GO! systems.
The switch on the rear of the video doorphone permits
switching video doorphone operation from analogue
mode to digital mode (V.O.P. and Digivoice).
The dimensions of the video doorphone are 241 x 200 x
83 mm. Installation requires no flush-mount box.
By adding a buzzer 9854/52 to the bracket, it is possible
to achieve differentiated floor call.
With Artico, the Sentry Mod. 1704 video doorphone can
be replaced using only the plastic support of the Artico
bracket Sch. 1705/100 onto which the electronic circuit of
the Sentry bracket already used in the system will be
fitted.
